DPM Recoil Reduction System for Shadow Systems MR920 - DR920 - XR920 & Elite 9mm Open Version
The DPM Mechanical Recoil Reduction System is a direct replacement for the stock recoil rod and does not change the configuration of the pistol.
This DPM System works with 3 different buffer recoil springs which each one offers different spring force (Forces are listed at the end of the description).

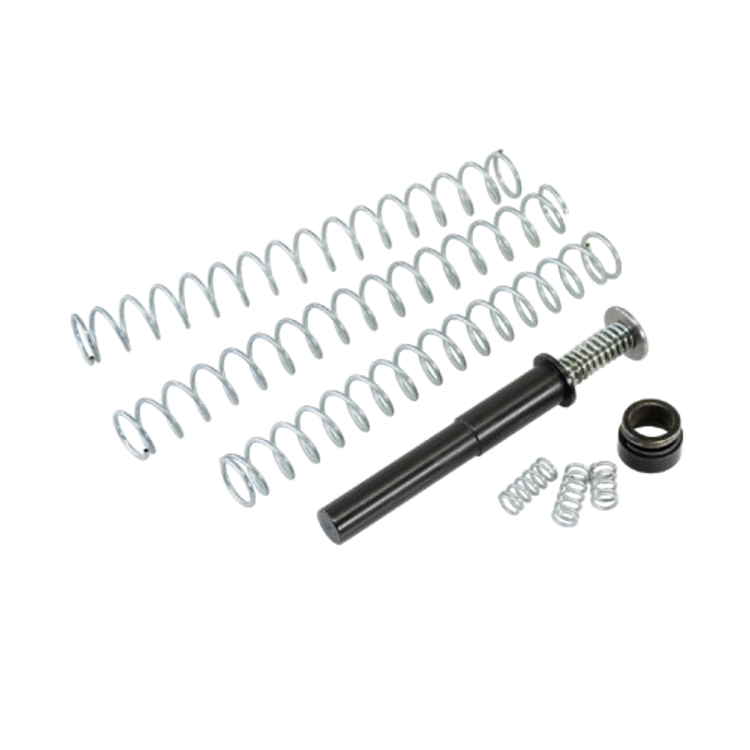

The kit includes 3 different in length external springs, 3 buffer springs and 1 self-lock spring plug.
The installation of the New Version remains the same as the older one, the user has to assemble the mechanism and select the combination of his/hers choice.
IMPORTANT:
The Self-lock spring plug must always be installed when the DPM kit is used.
Power Rates:
Slide on the battery (idle position)
- External Spring 1: 3.7 kgs / 8 lbs
- External Spring 2 : 4 kgs / 9 lbs
- External Spring 3: 4.4 kgs / 10 lbs
Slide full open position
- Buffer Spring 1: 8 kgs / 17 lbs (approx.)
- Buffer Spring 2: 9 kgs / 20 lbs (approx.)
- Buffer Spring 3: 10 kgs / 22 lbs (approx.)
For soft ammo the user must not install any buffer spring.
In this option the system will offer in full open position 5.5 kgs / 12 lbs total power.
Overall Advantages:
- Faster follow up shots
- Improved firing speed
- Slide and Frame Protection
- Elimination of jams
- Significant recoil reduction
- Better double-tap concentration
- Better control and greater accuracy
